CT10

ASTM / NACE Corrosion Rater
ASTM D665, D7548, NACE TM0172,
IP 135, ISO 7120, JIS K2510


 Download the brochure


A new instrumental approach for measurement of corroded surface area has been developed by AD Systems in which the exact percentage of corroded area is accurately determined by an automatic instrument reducing test subjectivity. The operation is based on a homogeneous lighting source, CCD camera, specimen rotation system, and specially designed application software. With CT10 the corrosion rating is now very repeatable and fully documented.

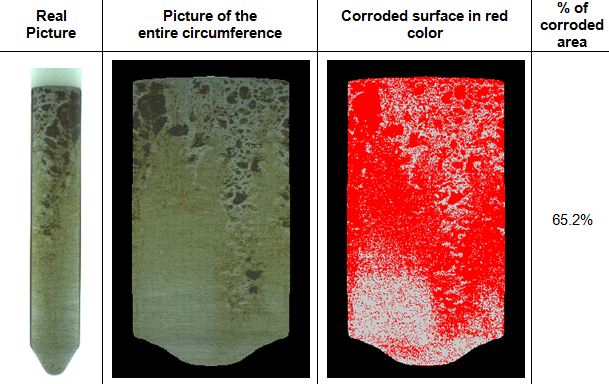

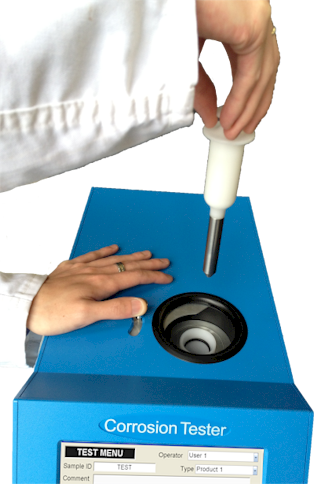

The CT10 test is simple and straight forward. The iron specimen is prepared according to the standard test procedure (using CB10 corrosion bath) and is placed in the test chamber of the CT10. The operator enters sample information, using an intuitive graphical interface with touch screen panel, and starts a specimen scan. The specimen is rotated in specially designed lighted chamber and several images are taken by digital camera. The software builds a flat image of the specimen suface, analyses it and calculates the percentage of the corroded area. This percentage is reported and translates it into a NACE rating.

A detailed test report is ready in less than 5 minutes.


Refineries
Mineral and steam turbine oils
Pipeline and terminals
Iron Corrosion testing

NACE TM0172
ASTMD665
ASTM D7548
IP 135
ISO 7120
JIS K2510






Quick, accurate and objective rating
Automatic specimen diameter verification
Compact design, robust construction, installed in minutes
The results are saved in an internal database and can be printed, transferred to a USB memory stick and/or sent to a LIMS
Every test is fully documented and traceable

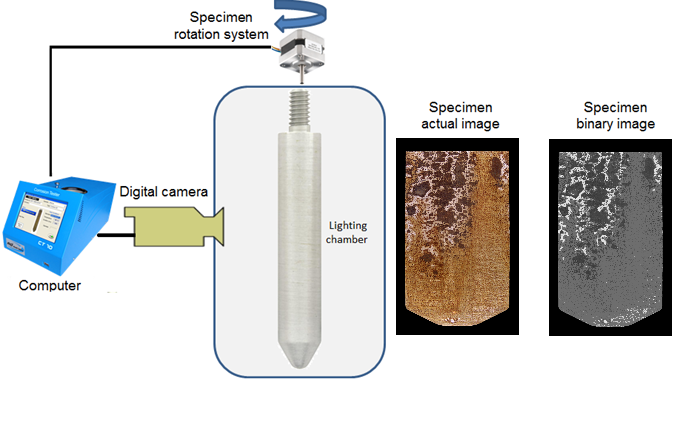

Operation is based on a homogeneous lighting source, CCD camera, specimen rotation system, and specially designed pplication software. Specific light is emitted onto the surface of the specimen. The specimen is rotated and several images are taken. The software builds a flat image of the specimen surface, calculates the percentage of the corroded area and then translates it into a NACE or ASTM rating. A detailed test report is ready in less than 5 minutes.

A new instrumental approach for measurement of corroded surface area has been developed by AD Systems in which the exact percentage of corroded area is accurately determined by an automatic instrument. Automation and test traceasbility eliminates operator subjectivity.

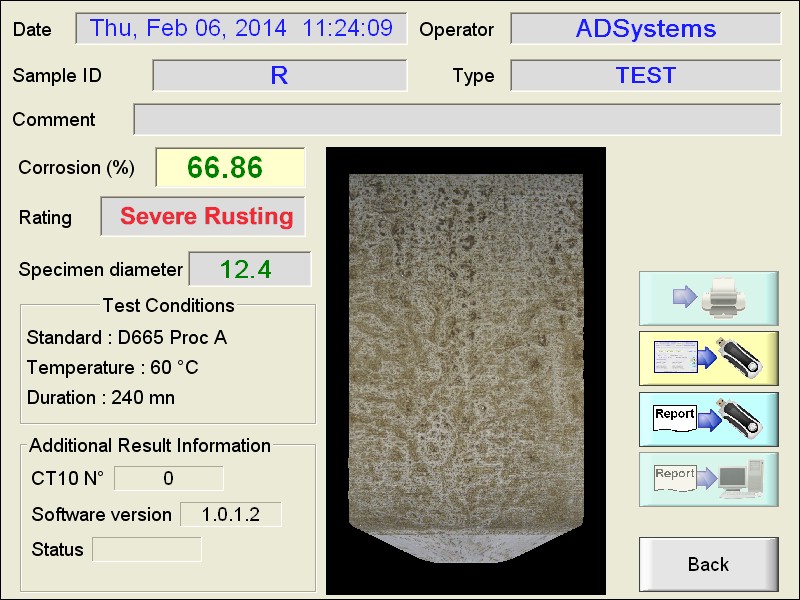

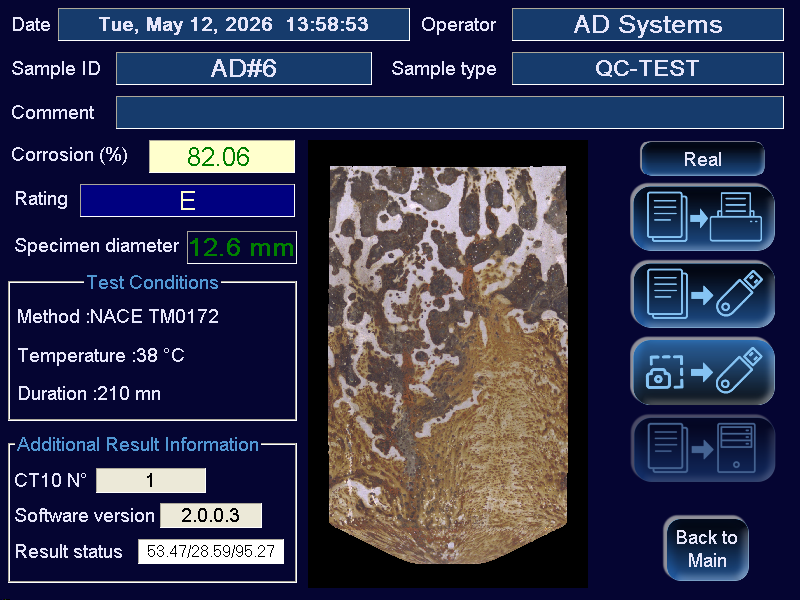

All details related to each test are recorded and stored into a local database. Complete test report including sample ID, operator name, date/time, standard, Procedure, Test duration, d egree of severity of rusting and picture of the rod. The result can be printed on optional printer. Multi-criteria search function facilitates retrieval of any test report in the database. Versatile communication features allow complete test report storage on a USB memory stick and/or transfer it to a LIMS when the CT 10 is connected to a LAN.


Technical Specification Description
Test method NACE TM0172, ASTM D665, D7548, IP 135, ISO 7120, JIS K2510
Interface 8' full-color touch screen
Language English, French, Russian
Results storage Database, USB stick, LAN
Communication 2x USB 2.0, Ethernet port
Printing Graphic printer (optional)
Weight 10kg



Operation and Storage conditions Description
Operation temperature and humidity range +15° to +30° humidity: 10 to 65% RHL, no condensation
Storage temperature and humidity range -20° to +50°C humidity: 5 to 95% RHL, no condensation
Power supply 230V, 50/60Hz, 1phase
Power consumption 250W

The Instrument
Catalog Number Description Picture

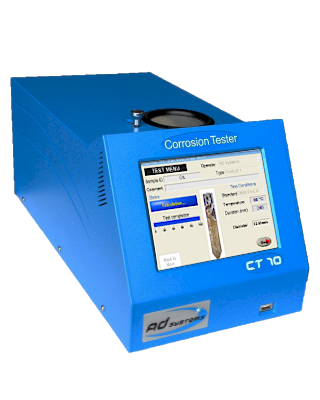

AA230-001 CT 10 - Corrosion Performance Rater
The instrument is supplied complete with 1x CT10 scan holder, 1x special stand for inserting the test specimen into the scan holder, 1x instruction/user manual
Accessories
Catalog Number Description Picture
AK000-005 Printer 112mm 230V 50/60Hz
Industrial thermal printer. Delivered pre-configured, with cable, adapter and 1 paper roll
AD230-001 CT10 Scan Holder
AA231-001

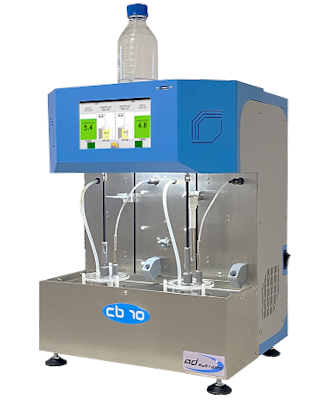

CB 10  - Semi-automated corrosion bath

2 independed test positions

Compliant to : ASTM D665, D4378, NACE TM0172, IP 135, ISO 7120, GOST 19199, JIS K2510

Consumables
Catalog Number Description Picture
AC230-001 Steel Test Specimen

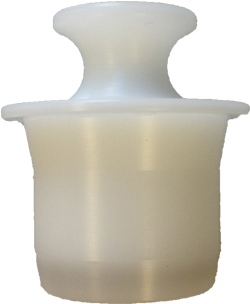

AD230-002 PTFE Test specimen holder
